Microphone Lapel article
The Complete Guide to Microphone Lapel
Lavalier microphones capture clear audio hands-free, discreetly clipped to clothing. Explore wireless and wired systems, positioning techniques, and professional applications.
Lavalier microphones—also known as lapel mics or tie-clip microphones—represent one of the most elegant solutions for hands-free audio capture in professional settings. Clipped discreetly to clothing near the speaker's mouth, these tiny microphones capture voices clearly whilst remaining almost invisible to audiences and cameras. From broadcast television and film production to business presentations and public speaking, lavalier microphones have become indispensable tools for anyone requiring professional-grade audio without visible equipment. This guide explores lavalier microphones, their advantages, varieties, and how to select one matching your specific application.
Understanding Lavalier Microphone Design
A lavalier microphone is simply a small condenser or dynamic microphone attached to a clothing clip, designed for mounting on lapels, ties, dresses, or shirts near the speaker's mouth. The microphone element is typically smaller than a typical handheld, optimised for proximity to the speaker's voice rather than capturing distance acoustic detail.
The clothing clip mounting system allows hands-free operation essential for presenters, instructors, actors, and performers. Unlike headset microphones that position the mic via a boom arm, lavaliers rely on microphone position relative to the speaker's clothing placement—a simpler mechanical design but one requiring proper positioning for optimal sound.
Lavalier microphones connect to audio systems through either a wired cable or wireless transmission system. Wired lavaliers simply plug into audio interfaces; wireless lavaliers transmit via UHF frequencies to a receiver, allowing mobility within transmission range.
Wired vs. Wireless Lavalier Systems
| Type | Advantages | Disadvantages |
|---|---|---|
| Wired Lavalier | No batteries or charging. No signal dropout risk. Simpler, more affordable. Excellent for stationary speakers or studio settings. | Cable limits movement. Cable must be managed discreetly. Tripping hazard on stages. |
| Wireless Lavalier | Complete freedom of movement. Professional appearance—no visible cables. Ideal for roaming performers, presenters, and film sets. | Battery management required. Potential interference or dropout. Higher cost. Requires receiver and transmitter coordination. |
Choice depends on application. Studio recording often employs wired lavaliers; film production, television, and live events almost universally use wireless systems.
Microphone Characteristics
Omnidirectional pattern: Captures sound equally from all directions. Simpler design, catches all nearby audio including rustling clothing and movement noise.
Cardioid pattern: Directional, primarily capturing sound from the front (towards the speaker's mouth). Rejects side and rear noise, providing better isolation from clothing rustle and ambient sound.
For lavalier applications, omnidirectional mics suit controlled studio environments; cardioid patterns work better for live events and dynamic settings where extraneous noise needs rejection.
Capsule Types
Condenser capsules: Standard for lavalier microphones, offering clarity, presence, and sensitivity capturing detail in speech and vocals. Require phantom power (typically provided by audio interfaces or wireless systems). Prone to moisture damage in humid environments.
Dynamic capsules: Less common in lavaliers but more rugged and moisture-resistant. Slightly less sensitive, making them suitable for loud environments where condensers might distort.
Professional lavaliers employ high-quality condenser capsules; budget options might use inferior elements affecting sound quality and longevity.
Common Applications
Television and broadcast: Lavaliers are standard equipment for news anchors, talk show guests, and documentary subjects. Wireless lavaliers keep presenters mobile whilst maintaining professional audio quality.
Film and video production: Lavaliers capture dialogue and actor vocals clearly whilst allowing dynamic cinematography without microphone booms visible in frame.
Business presentations and conferences: Speakers wearing lavaliers maintain professional appearance whilst allowing hands-free gesturing and movement across stages.
Live events and theatre: Actors and singers wear hidden lavaliers captured by wireless systems, allowing amplification of performances without visible equipment.
Fitness instruction and group training: Instructors wearing lavaliers project voices clearly across studios without holding microphones, enabling dynamic instruction.
Positioning and Audio Quality

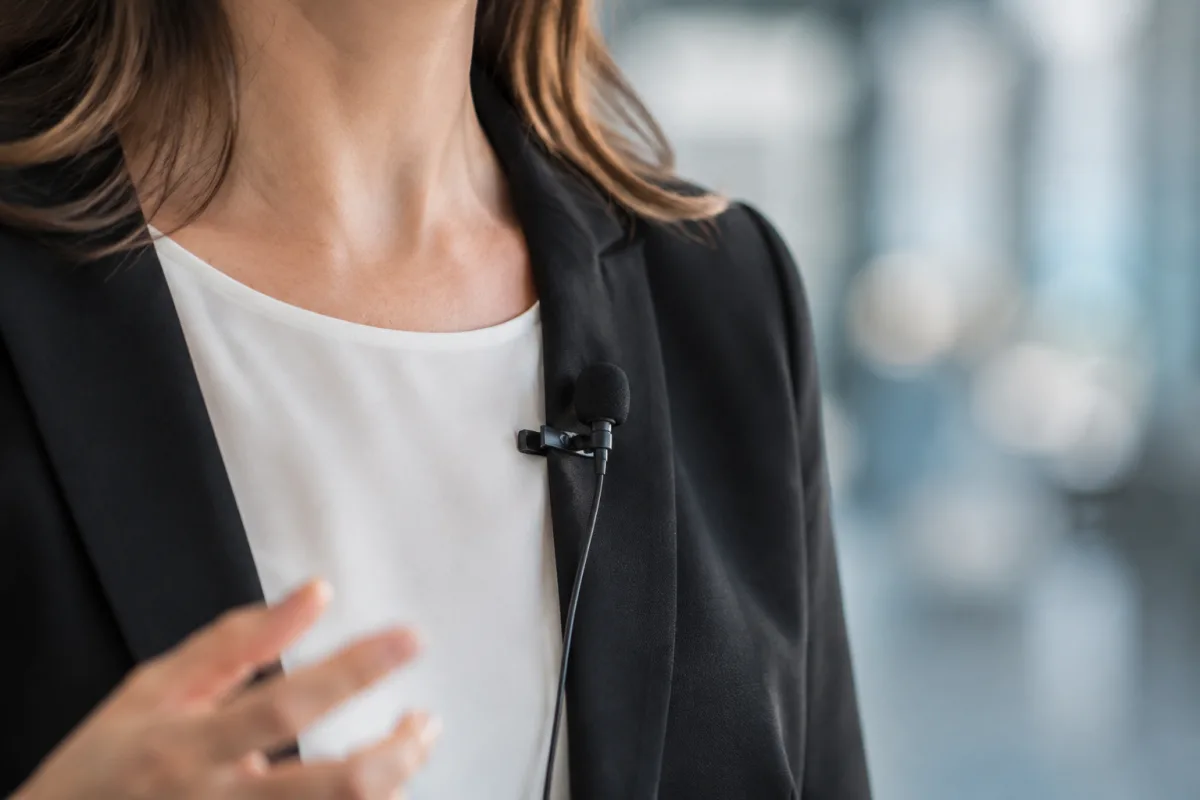

Lavalier placement dramatically affects audio quality. The microphone should sit approximately 15–20 centimetres below the speaker's mouth, clipped to a lapel or tie. Too close and bass frequencies intensify uncomfortably; too far and clarity diminishes.
Clothing type affects audio significantly. Cardioid lavaliers clipped to silky clothing sometimes pick up rustling when the wearer moves; cotton reduces rustling. Hard mounting surfaces (clips directly to leather or structured fabrics) transmit more movement noise.
Professional audio technicians employ windscreens and lavalier covers—foam sleeves that reduce wind noise, rustling, and handle noise during positioning adjustments. These simple additions substantially improve audio quality in dynamic environments.
Cable Management
Wired lavalier cables must be managed discreetly from the microphone to the audio system. Professional techniques include routing the cable under clothing (shirts, dresses) to conceal it from cameras and audiences. Cable clips and tape secure the cable to clothing, preventing movement and handling noise.
Clothing-integrated lavalier capsules (built into buttonholes or lapel openings) represent the ultimate integration—the microphone becomes nearly invisible.
Wireless Lavalier Considerations
Wireless lavaliers require transmitter packs worn at the waist or hidden in clothing pockets. Transmission range typically extends 50–200 metres depending on system quality and venue. Frequency selection and antenna positioning affect reliability.
Battery life typically ranges 4–8 hours for wireless systems. For all-day events or multiple performances, battery management becomes crucial. Professional touring rigs employ hot-swappable battery systems allowing quick changes.
Sound Quality Across Applications
Lavalier microphone sound quality suits speech and vocals excellently. The proximity positioning emphasises presence frequencies around 3–5 kHz, naturally enhancing intelligibility and projection. This presence peak makes lavaliers particularly effective for speech recording, commentary, and vocals.
For music instrument recording, lavaliers are less ideal—the limited frequency response and presence peak suit voice more than instrumental timbres. For vocals performed on stages, however, lavaliers work exceptionally well.
Professional vs. Budget Lavaliers
Budget lavaliers (£30–£100): Adequate for casual recording, podcasting, and presentations. Sound quality is acceptable but not exceptional. Build quality is simpler and durability is lower.
Professional lavaliers (£200–£600+): Broadcast and film-standard equipment. Superior sound quality, rugged construction, longer lifespan. Used across professional production environments and touring live events.
For occasional use, budget lavaliers suffice. For regular or professional applications, investing in quality equipment yields noticeable sound improvement and reliability benefits.
Maintenance and Care
Lavalier microphones require minimal maintenance. The microphone capsule occasionally needs gentle cleaning with a soft cloth to remove dust or debris. The clothing clip remains durable across years of use.
Wired lavaliers' primary wear point is the connection where the cable meets the microphone element. Gentle handling and avoiding sharp bends extend cable life substantially.
Wireless lavaliers' main concern is the transmitter pack battery contacts and charging system. Keeping contacts clean and batteries properly stored prevents corrosion and extends equipment life.
Conclusion
Lavalier microphones represent elegant solutions for professional audio capture in countless applications. Their hands-free design, inconspicuous mounting, and excellent speech reproduction make them preferred tools across broadcasting, film production, live events, and presentations. Whether selecting wired systems for stationary speakers or wireless lavaliers for roaming performers and presenters, quality lavalier microphones deliver professional-grade audio without visible equipment cluttering the scene. For anyone requiring invisible yet effective audio capture, lavalier microphones offer proven performance and reliability proven across decades of professional use.
