Modular Synth Patch Cables: Connecting Your System

Modular synth patch cables are the literal connections between your synthesiser's components, transforming separate modules into an integrated instrument. To someone unfamiliar with modular synthesis, patch cables might seem simple—just wires connecting things together. In reality, the cables you choose, how you route them, and how well they perform dramatically affect your modular system's reliability and sound quality. Understanding modular synth patch cables helps you build rigs that work reliably and sound excellent.

What Modular Synth Patch Cables Do

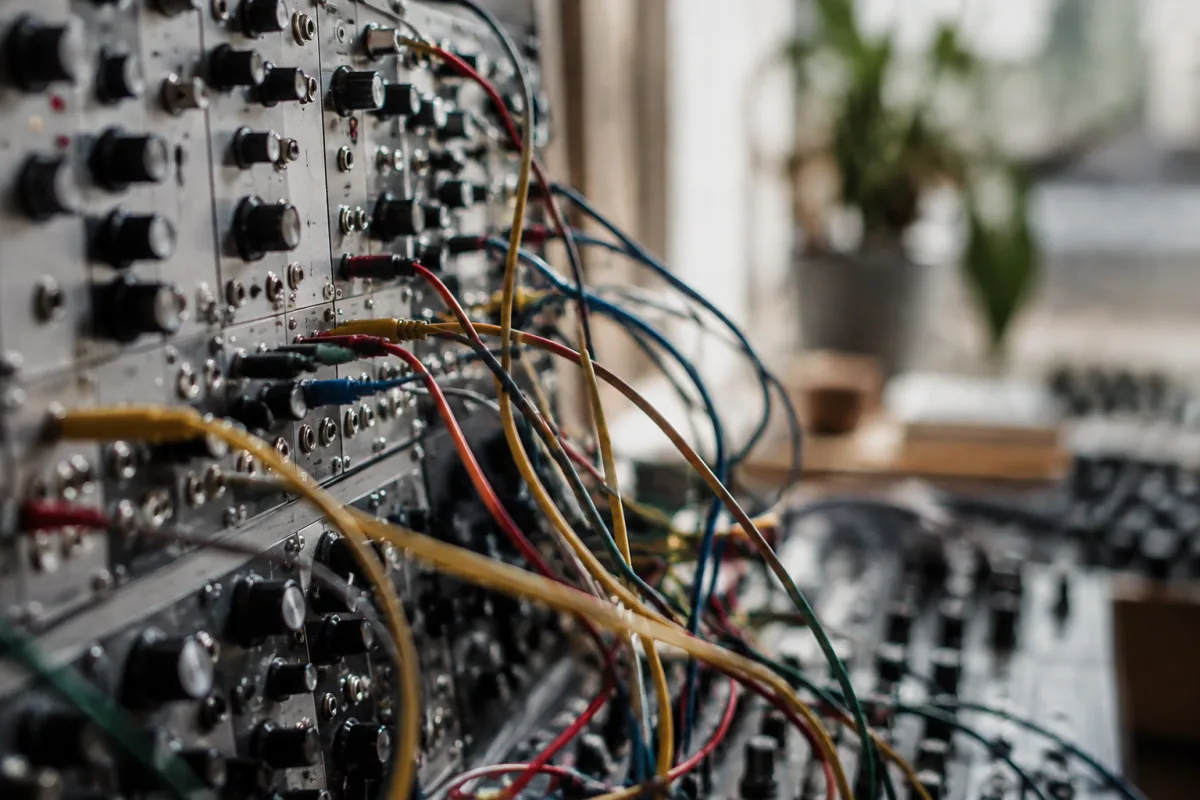

Modular synthesisers work by routing signals between modules using patch cables. An oscillator might connect to a filter, which connects to an amplifier. A modulation source controls parameters in real-time. Envelope generators trigger events. These connections happen through patch cables plugged into sockets on your modules. The patches you create—how you wire the modules together—define the instrument's sound and behaviour.

Different cable types carry different signal types. Audio-rate cables carry sound-frequency signals (oscillators to filters). Control-voltage (CV) cables carry slower modulation signals (LFOs to parameter inputs). Gate cables trigger events when voltage rises. A quality modular system uses the right cable types for each application. Using wrong cables leads to noise, signal loss, and unreliable behaviour.

Standard Modular Patch Cable Specifications

Most modern modular synthesisers use 3.5mm (1/8 inch) jack connectors, also called Eurorack standard. The cable consists of a shielded core (the signal), shielding (ground), and an outer jacket. Quality cables use good shielding to minimise noise and interference. Budget cables sometimes skimp on shielding, resulting in hum and noise in your patches.

Cable length typically ranges from 15cm to 90cm. Shorter cables suit closely spaced modules and reduce noise pickup. Longer cables enable connecting distant modules but pick up more electromagnetic interference. Most modular musicians use a mix of lengths for maximum flexibility.

Cable gauge (thickness) affects signal integrity. Thicker cables have lower resistance, preserving signal strength over longer distances. Budget cables often use thin gauge, which works for short distances but can cause signal loss on longer runs. Thicker gauge cables cost slightly more but improve reliability.

Types of Modular Synth Patch Cables

Audio cables carry full-frequency audio signals. These connect oscillators, filters, amplifiers, and effects modules. Audio cables require excellent shielding to prevent hum and noise. Most audio cables use 22-24 gauge wire with quality shielding. Investing in quality audio cables noticeably improves your patch's sound.

CV (control voltage) cables carry slowly modulating signals from LFOs, envelope generators, and sequencers to parameter inputs. CV cables can use lighter gauge than audio cables—the slow modulation frequencies tolerate less shielding. However, quality CV cables still provide benefits through reduced noise and interference.

Gate and trigger cables carry simple on-off signals triggering module events. These typically use thinner cables since they're just digital pulses. However, quality shielding still prevents noise from affecting trigger reliability.

Some modular musicians use different coloured cables for different signal types—red for CV, blue for gates, black for audio. This colour coding doesn't affect function but significantly improves system clarity and troubleshooting ease.

Cable Quality and Its Impact

Budget cables work initially but often develop intermittent failures or introduce noise that degrades your sound. Poor shielding picks up electromagnetic interference from power supplies, computers, and other electronics. A modular system with consistently clean sound requires quality patch cables.

Professional patch cables from established manufacturers like Sennheiser, Neutrik, and Hosa maintain signal integrity and durability. These cables cost more initially but last years and improve your modular system's sound immediately. The difference between budget and quality cables becomes obvious when you listen—quality cables sound cleaner, clearer, with reduced hum and noise.

Reliability matters during live performance. A patch cable that randomly disconnects or introduces noise ruins a performance. Modular musicians performing professionally consistently choose quality cables because the investment prevents on-stage disasters.

Common Modular Synth Patch Cable Problems

Intermittent connections occur when connectors corrode or become loose. Poor quality connectors develop oxidation that prevents good electrical contact. Cleaning connectors with isopropyl alcohol sometimes restores connection, but eventually replacement becomes necessary. Quality cables have robust connectors resisting corrosion.

Noise and hum often indicate poor cable shielding. Hum at 50Hz (power line frequency) or 60Hz (North American standard) indicates electromagnetic interference penetrating inadequate shielding. High-frequency noise suggests poor signal integrity. Replacing budget cables with quality alternatives typically eliminates these issues.

Intermittent signal loss might indicate damaged inner conductors. Modular cables take physical stress during patching, re-patching, and vigorous live performance. Budget cables develop broken conductors prematurely. Quality cables with robust construction handle physical stress without failing.

Building a Cable Collection

Start with a mix of lengths rather than buying every possible length. A typical collection includes a few 15-20cm "shorties" for adjacent modules, several 30-40cm mid-range cables for typical patching, and a few 60-90cm longer cables for spanning large racks or complex patches. This variety covers most patching scenarios.

Buy more cables than you think you need. Most modular musicians keep cables handy in reserve. Running out of cables frustrates creative exploration. A reasonable collection for a medium-sized system (10-15 modules) includes 20-30 patch cables of various types and lengths.

Consider colour coding. Buying cables in different colours—or using heat shrink tubing to colour code neutral cables—dramatically improves system clarity. Seeing at a glance which cables carry audio, CV, and gates makes troubleshooting and reconfiguration faster and more intuitive.

Patch Cable Maintenance

Periodically disconnect and reconnect your cables, cleaning connectors with a dry cloth as you go. This prevents oxidation and keeps connections clean. If cables develop noise issues, cleaning the connectors often restores functionality.

Store cables loosely rather than wrapping them tightly. Tight coiling stresses connectors and inner conductors, causing premature failure. A cable bag or loose coil preserves cable lifespan and reduces reliability issues.

Replace cables showing visible damage—frayed jackets, kinked cores, or loose connectors. Continuing to use damaged cables risks signal loss and intermittent failures during critical performances.

Modular Patch Cable Price Considerations

Budget cables often cost £1-£3 per cable. These work initially but frequently develop problems. For a system with 20-30 cables, budget pricing seems appealing until intermittent failures occur.

Quality cables typically cost £3-£8 per cable depending on length and construction. This seems more expensive initially, but the durability and performance improvements quickly pay off. Most modular musicians consider this investment essential.

Bulk purchasing sometimes offers discounts. Many cable manufacturers offer cable packs at reduced per-unit pricing. Building your cable collection through bulk purchases saves money whilst ensuring consistent quality throughout your system.

Professional Versus DIY Cables

Professional cables come pre-assembled with quality connectors and shielding. They're reliable and consistent—you know exactly what you're getting. Professional cables suit most modular musicians and touring systems.

Some enthusiasts make their own patch cables, sourcing quality wire, connectors, and shrink tubing. DIY cables can be cheaper and let you create custom lengths and colour schemes. However, cable assembly requires skill to maintain quality. Poorly assembled DIY cables sometimes work worse than budget commercial alternatives.

Patch Cable Best Practices

Never force connectors into sockets. Modular synthesisers use tight tolerances—forcing damaged connectors can damage the socket. If a connector feels stuck, try gently rocking it back and forth rather than pulling hard.

Keep cables away from power supplies when possible. Unshielded power cables generate electromagnetic noise that shielded patch cables might still pick up if routed directly alongside them. Physical separation reduces interference.

Label your patch cables if working with complex routings. Small adhesive labels identifying cable function make reconfiguration faster and prevent confusion. During live performance, clarity matters.

Conclusion

Modular synth patch cables are fundamental to your system's reliability and sound quality. Investing in quality cables from established manufacturers eliminates noise, improves signal integrity, and prevents the intermittent failures that plague budget cables. Build a collection with a mix of lengths, colours, and types suited to your modular system's needs. Proper care and maintenance keep your cables performing reliably for years. Your patch cables deserve the same attention you give your modules—treat them as critical infrastructure, not afterthoughts, and your modular system will reward you with consistent, clean, wonderful sound.
