The Complete Guide to Speaker And Amps

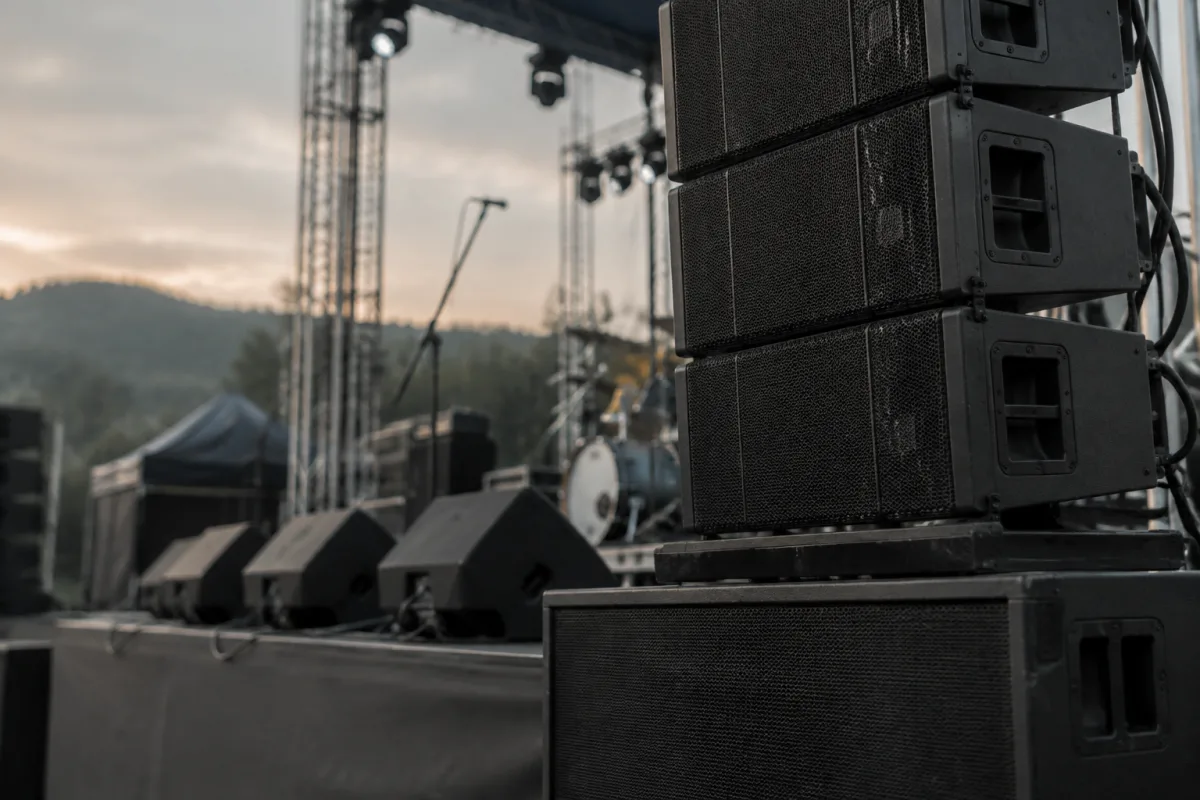

Speakers and amps form the heart of live sound systems—choose correctly matched units to deliver reliable, powerful audio to any audience.
Understanding how speakers and amps work together is fundamental to building a live sound reinforcement system that reliably delivers music to an audience. Whether you're setting up a pub gig, managing a community hall event, or building a professional touring PA, selecting the right combination of speakers and amps determines whether your system delivers clean sound, handles dynamic programme material, and survives years of touring wear. This guide explores speaker and amp pairing, key specifications, and how to choose a combination suited to your venue and budget.
How Speakers and Amps Work Together
A speaker and amp combination forms the heart of any sound reinforcement system. The amp amplifies an audio signal to sufficient voltage and current to drive the speaker's voice coil, moving the speaker cone and generating acoustic pressure. Mismatched speakers and amps waste energy, create distortion, or damage equipment. Speakers and amps specified for each other ensure efficient power transfer and reliably good sound.
Speakers and amps are rated in watts—the measure of electrical power the amp outputs and the speaker accepts. A 100W amp driving a 100W speaker runs efficiently. Connecting a 10W amp to a 100W speaker wastes the speaker's capacity and limits volume; connecting a 1000W amp to a 100W speaker risks damaging the speaker through excessive power. Matching speakers and amps in wattage is essential.
The impedance (measured in ohms, abbreviated Ω) of speakers and amps must also match. Standard PA speaker impedance is 4Ω, 8Ω, or 16Ω. Amps specify output impedance—typically 4Ω or 8Ω. Mismatched impedance between speakers and amps causes power loss and potential amp damage. Always confirm your speakers and amps are impedance-compatible before purchasing.
Key Specifications of Speakers and Amps
When evaluating speakers and amps, understand these specifications:
- Power rating (watts): The continuous watts RMS (root mean square) an amp outputs and a speaker can handle. Speakers and amps should match in wattage; premium speakers and amps tolerate brief transient peaks beyond their rated power.
- Impedance (ohms): The electrical resistance of a speaker or amp output. Speakers and amps must have compatible impedance. Mismatched speakers and amps create power loss and risk damage.
- Frequency response: The range of audio frequencies a speaker reproduces accurately. Speakers and amps with broader frequency response (e.g., 40 Hz–20 kHz) suit full-range music programme; limited response suits specific uses (e.g., subwoofers for bass).
- Sensitivity (dB SPL): How loud a speaker plays at a given power level. High-sensitivity speakers (90+ dB SPL at 1W, 1m) are more efficient; speakers and amps paired with high-sensitivity speakers achieve louder volume with lower amp power.
- Connectors: XLR and Speakon connectors on speakers and amps ensure secure, reliable connection. Banana plugs are acceptable for small systems; touring gear uses professional Speakon or multi-pin connectors.
Powered vs. Passive Speakers and Amps
Speakers and amp systems come in two architectures. Passive speakers and amps require a separate power amp; passive speakers have no onboard amplification. This setup offers flexibility—you choose speakers and amps independently and can upgrade one without replacing the other. Powered speakers integrate amp and speaker in one unit, eliminating cable runs and simplifying setup. Modern live PA systems often blend powered speakers and amps—powered speakers for main L/R systems, passive speakers and amps for monitors or additional coverage.
| System Type | Flexibility | Setup Complexity | Typical Use | Cost Range |
|---|---|---|---|---|
| Passive speakers and amps | High (mix and match) | Medium (cable runs) | Professional touring, permanent installations | £500–5000+ |
| Powered speakers and amps (integrated) | Medium (unit-level choices) | Low (minimal setup) | Small venues, portable setups, backup systems | £300–2000 |
| Hybrid (powered main, passive monitors) | Very high (customise each element) | Medium (mixed cable runs) | Professional live sound, mid-size events | £1000–5000+ |
Selecting Speakers and Amps for Your Venue
Match speakers and amps to your venue size and programme requirements. A small pub gig might need 200W of powered speakers and amps; a mid-size venue (200–500 capacity) requires 400–1000W of main PA plus monitor speakers and amps; a large venue or outdoor event requires multiple thousands of watts of speakers and amps with sophisticated control.
Consider how your speakers and amps will be deployed. For touring, portable powered speakers and amps (2-way systems with integrated amps) simplify transport and setup. For permanent installation, passive speakers and amps offer better customisation and easier replacement of individual components.
Connectivity and Cabling for Speakers and Amps
Professional speakers and amps use Speakon or multi-pin connectors for speaker cable runs, and XLR for microphone/line signals to amps. Run separate microphone cables and speaker cables—never mix them, as speaker current can damage sensitive microphone preamps. Quality cable minimises loss and noise in your speakers and amps signal path.
Speaker impedance must remain constant in passive speaker and amp systems. Connecting multiple passive speakers and amps to one amp requires careful impedance calculation—eight 8Ω speakers wired in parallel result in 1Ω total impedance, which can damage amps not designed for such low impedance. Your speakers and amps documentation will specify safe wiring configurations.
Maintenance and Care for Speakers and Amps
Protect your speakers and amps investment through routine care. Keep speakers and amps clean and dry, avoid prolonged exposure to direct sunlight (which degrades components), and never leave speakers and amps powered overnight. Check all cables and connections before each event. If your speakers and amps develop noise, distortion, or reduced volume, inspect for loose connections, damaged cables, or speaker cone tears.
Conclusion
A properly matched combination of speakers and amps forms the foundation of reliable live sound. By understanding wattage, impedance, frequency response, and deployment options, you can choose speakers and amps suited to your venue, programme material, and budget. Whether building a portable rig for small gigs, maintaining a permanent installation, or scaling up to festival-sized systems, the principles of selecting complementary speakers and amps remain constant. Invest in quality speakers and amps that match your specifications, treat them with care, and they will deliver years of dependable performance.
