The Complete Guide to Record Player Cartridges

Why Record Player Cartridges Matter More Than You Think

The cartridge on your turntable is perhaps the most overlooked component of the vinyl playback chain. Sit down with an audiophile and ask them where the magic happens in vinyl playback, and many will point to the cartridge—the delicate device that translates the microscopic grooves in your records into electrical signals. Get this one component right, and your entire system suddenly performs at a higher level. Choose poorly, and even the best turntable and amplifier can't save you from dull, fatiguing sound.

Think of the cartridge as the translator between analogue and electrical. A record player cartridge reads the physical stylus tracing through vinyl grooves, converting mechanical vibrations into electrical signals your amplifier can amplify and your speakers can reproduce. The quality of this translation—how accurately it captures the subtle details your vinyl contains—determines how alive your music sounds.

How Record Player Cartridges Work

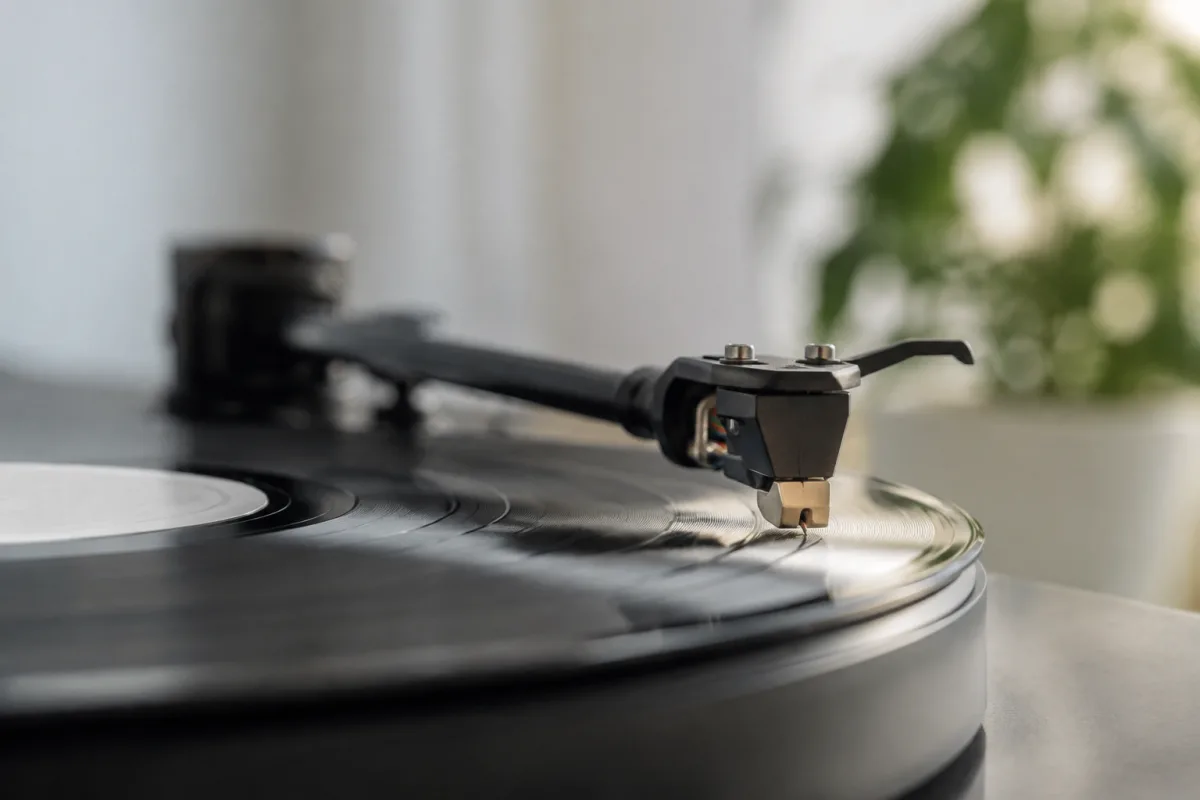

A record player cartridge contains a stylus (the needle) at one end and a transducer at the other. As the stylus traces the groove, it vibrates side to side (stereo information) and up and down (groove modulation). These vibrations travel up a cantilever arm to magnets or coils inside the cartridge body. In a moving magnet design, the vibrations cause magnets to move past coils, generating electrical current. In a moving coil design, coils move past magnets, with similar results.

The stylus itself matters enormously. A blunt, worn stylus damages your records and produces dull sound. A sharp, properly shaped stylus reads groove information with precision and tracks without excessive wear. Spherical styli work reasonably well; elliptical styli (with a narrower profile in the groove direction) contact less record surface, reducing friction and wear whilst improving tracking ability. Advanced designs like Shibata profiles fit groove modulation more precisely, capturing even more detail.

Moving Magnet vs. Moving Coil Designs

Moving magnet record player cartridges are the most common design. They're relatively affordable, produce usable levels of output that work with standard amplifiers, and are easy to replace. A quality moving magnet cartridge delivers genuine musical performance without breaking the bank. If you're not deep into the audiophile rabbit hole, a good moving magnet probably represents excellent value.

Moving coil record player cartridges use a different principle: lighter coils move instead of heavier magnets. This lower mass results in faster tracking, more detail, and more transparency in the sound. Moving coil cartridges sound more dynamic, more precise, and more musical—to most ears. The tradeoff: they cost significantly more, produce lower output (requiring a specialised preamp), and are more fragile. Many serious collectors upgrade to moving coil when they're ready to squeeze every detail from their vinyl.

Tracking Force and Compliance

Every record player cartridge needs proper tracking force—the downward pressure of the stylus on the vinyl. Too little force, and the stylus bounces around, skipping information and sounding distorted. Too much force, and you're grinding the groove into powder, destroying the record and stressing the cartridge. The ideal sits in a narrow range specified by the cartridge manufacturer, typically between 1.5 and 2.5 grams.

Compliance—how much the cartridge's internal suspension flexes—affects tracking force requirements. A high-compliance cartridge needs less tracking force; a low-compliance cartridge needs more. Your turntable's effective mass (the combined mass of the tonearm and cartridge) interacts with compliance to determine if tracking is smooth and stable. A mismatch between cartridge compliance and tonearm mass results in tonearm bounce and poor tracking.

Frequency Response and Stylus Profile Impact

A quality record player cartridge should have a flat, accurate frequency response—reproducing all frequencies from bass to treble equally. Budget cartridges often have emphasised treble that sounds harsh or emphasised bass that sounds boomy. Good cartridges avoid colouration, letting your records sound like themselves rather than like the cartridge.

The stylus profile dramatically affects how frequencies are reproduced. A spherical stylus works acceptably but leaves some groove information unread. An elliptical stylus improves clarity and detail. Advanced Shibata or Van den Hul profiles optimise groove contact, delivering the maximum detail possible. Upgrading the stylus profile on your cartridge is often the quickest way to improve your system's sound without replacing the entire cartridge.

Output Level and Impedance

Record player cartridges produce surprisingly tiny electrical signals—typically 5-10 millivolts for moving magnet designs. Your preamplifier must amplify this to line level (roughly 1 volt). The cartridge's output impedance determines how well it works with your preamp. A mismatch can result in tonal problems—brightness, muddiness, or loss of detail.

Moving coil cartridges output even lower levels (around 0.5-2 millivolts), requiring either a dedicated moving coil preamp or a step-up transformer. This extra cost is part of the moving coil equation, but it explains some of the price premium—you need the right supporting equipment to make the cartridge sing.

Maintenance and Stylus Wear

A record player cartridge stylus doesn't last forever. Even the hardest diamond tip eventually wears, becoming rounder and less able to track precisely. A well-maintained stylus might last 1,000 hours of playing time; a neglected one might fail in a few hundred. Regular cleaning—removing dust before it embeds in vinyl and then the groove—dramatically extends stylus life.

When replacement time comes, you have options. Replacing just the stylus is often possible and costs far less than replacing the entire cartridge. However, some cartridges (particularly budget models) are not designed for stylus replacement. Understanding your cartridge's maintainability before you buy ensures you're not stuck discarding the entire unit when the stylus wears.

Selecting the Right Record Player Cartridge for Your System

Budget turntables often come with acceptable but uninspiring cartridges. Upgrading to a quality aftermarket cartridge is often the single most impactful upgrade you can make. The improvement in detail, clarity, and musicality can be dramatic. Similarly, if your turntable's tonearm is well-designed and properly balanced, upgrading from budget to mid-range cartridges yields proportionally large sonic improvements.

Match the cartridge to your tonearm's effective mass. Check the cartridge's compliance specification and ensure it's compatible. Consider whether you'll eventually upgrade to moving coil—some high-end turntables are better served by moving coil from the start. Research the specific model you're considering, read reviews from people with similar systems, and if possible, listen before you buy.

Remember: vinyl playback is a chain, and every link matters. A quality record player cartridge is the link that translates groove into sound, and getting it right transforms how your vinyl sounds. Whether you're a casual listener or a serious collector, investing in a good cartridge rewards you with better music every time you play a record.
